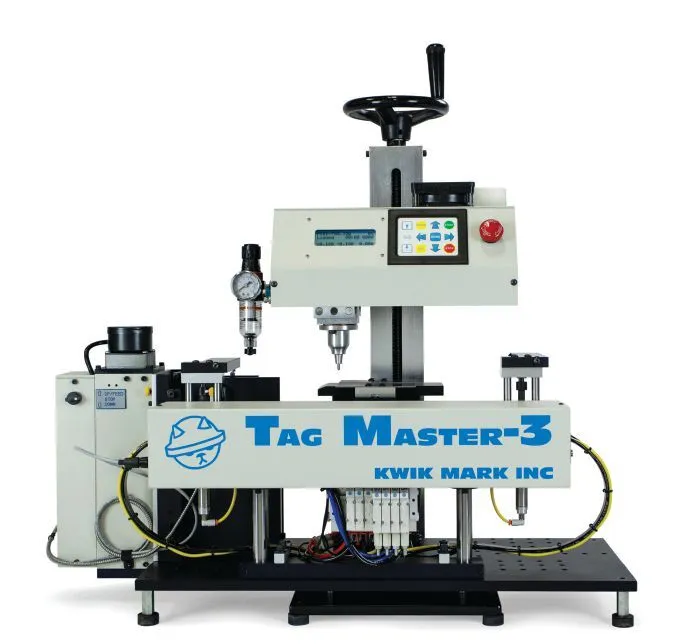

Above: The Tag Master 3’s automated top feed design promotes greater marking accuracy with fewer operator interventions.
April, 2026- Efficiency, accuracy and reliability are vital to manufacturing systems. The ability to identify, track and document the life cycle of a partend-to-end, item-level traceabilityfrom raw material to manufacturing, distribution and end use, is mandatory for a growing number of industries. One hundred percent part traceability driven by digital technologies such as IoThas replaced reactive, sample-based inspections with proactive, real-time data capture.
Such traceability begins with permanent part identification. Part marking verifies authenticity, protects product integrity and prevents counterfeit components from entering the supply chain. For many manufacturers, the decision comes down to two primary technologies: dot peen marking and laser marking
The Tag Master 3 creates deep, precise impressions by rapidly striking the surface with a hardened pin.
COSTEFFECTIVE OPTION
Laser systems offer speed and surface-level marking for certain applications. Fabricators who work with heavy-duty, rough or large industrial components need deep, permanent engraving that can withstand harsh environments. Dot peen technology like Kwik Mark Inc.’s Tag Master 3 provides several advantages.
Dot peen systems typically require less upfront investment than industrial laser systems, making them a cost-effective solution for high-volume operations.

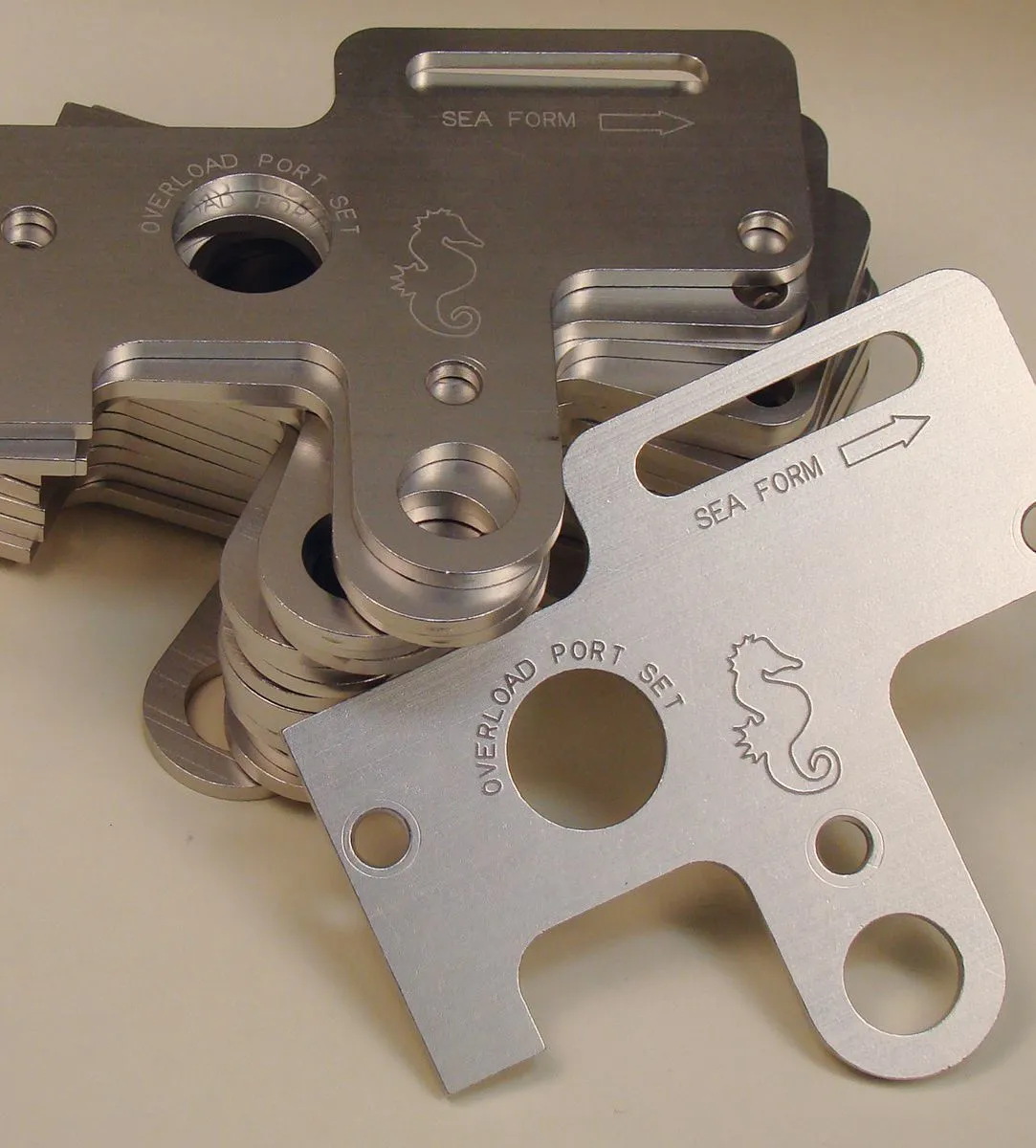

Unlike standard laser marking, dot peen technology physically indents the material. The result is a deep, highly legible mark that resists abrasion, chemicals, heat and weather exposure.
Portable dot peen markers allow on-site marking of oversized or heavy components, eliminating the need to move parts to a laser station.
Based in McHenry, Illinois, Kwik Mark designs and manufactures high-speed, chipless marking systems for demanding production environments. Its 25,000-squarefoot facility is dedicated to research and development and high-tech machine assembly for marking machines that can create permanent, non-destructive marks up to 20 characters per second on materials ranging from hardened steel to plastic.
Kwik Mark’s benchtop and portable systems do not require a PC for operation, simplifying deployment and training. The company’s in-house capabilities include engineering and design, CNC machining, fabrication, welding, assembly, testing and electrical.

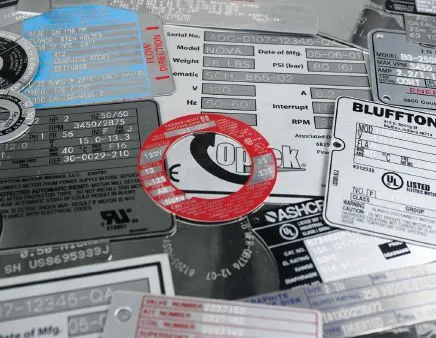

An automated tagging solution, the Tag Master 3 creates deep, precise impressions by rapidly striking the surface with a hardened pin. It produces permanent characters, logos, serial numbers, barcodes and data matrix codes capable of surviving harsh industrial conditions.
TOPFEED DESIGN
Unlike conventional bottom-feed systems, the Tag Master 3’s automated feeding system was engineered to help manufacturers overcome several challenges. According to Kwik Mark, traditional bottom-feed escapement systems have long frustrated fabricators. Slight variations in tag thickness, sharp edges, or tags sticking together can lead to jams, misfeeds, scratching and even downtime. The Tag Master 3 solves this problem with a topfeed automatic tag feeder.
By transferring tags from the top of the magazine rather than the bottom, the system eliminates many mechanical issues associated with “coin changer” style escapements. Tags do not escape from the bottom, and feeding remains smooth and consistent regardless of stack weight. Manufacturers and fabricators are able to prevent downtime, mark parts more accurately with fewer operator interventions, and boost throughput.
Tool changes and setup adjustments are not required when switching tag sizes or thicknesses.
HIGHER EFFICIENCY
Tool changes and setup adjustments are not required when switching tag sizes or thicknesses. Changeovers are faster and production efficiency will be improved. A userfriendly display gives operators full visibility into the marking process. Key features include a batch counter, cycle timer, real-time status updates, integrated percentage- ofcompletion indicators and an integrated production history log.
The system also includes a print queue driver that allows multiple users to manage job menus, variables, quantities, batch counts, and cycle timesimproving accountability and workflow coordination.
Kwik Mark’s Tag Master 3 offers fabricators a cost-effective solution for high-volume part marking for heavy-duty, rough or large components.
As a fully automatic feeder and marker, the Tag Master 3 can be incorporated into production lines for continuous, high-volume marking. While optimized for hands-free operation, it can also interface with access control systems when manual or gated intervention is required.
Reliable automated feeding means operators spend less time troubleshooting, which allows manufacturers to reallocate labor to higher value tasks without increasing headcount.
For fabricators looking to eliminate tagging bottlenecks, increase throughput and build capacity in a volatile market, the Tag Master 3 could be a practical, production- ready solution.
Kwik Mark, 815/363-8268, kwikmark.com
